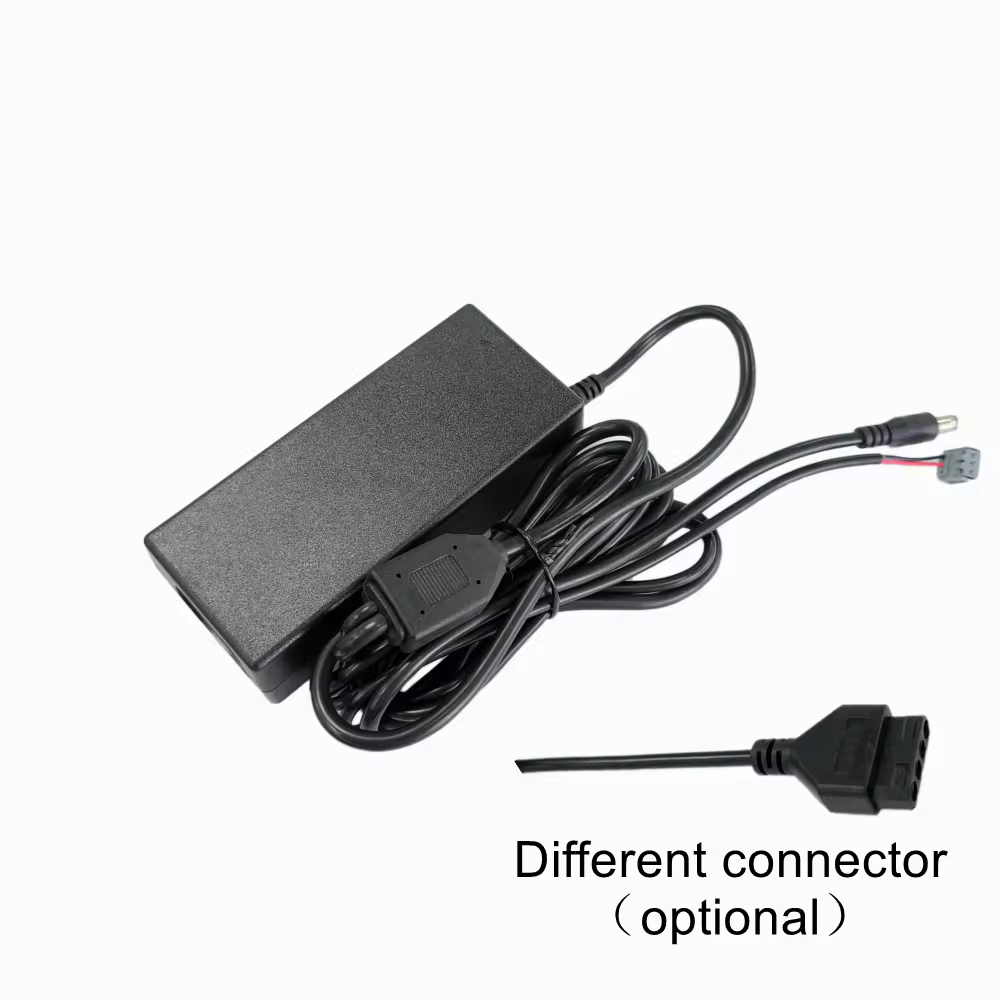

12V 0.8A 5V 4A Dual Output Power Adapter 30W

Product Overview

The 12V 0.8A & 5V 4A Dual Output Desktop Power Adapter is a compact, efficient power solution engineered to deliver two independent DC outputs simultaneously — 12V/0.8A and 5V/4A — eliminating the need for multiple single-output adapters. With universal AC input (100-240V) and a total power output of 29.6W, it works seamlessly across global regions. The desktop form factor with IEC320-C8/C14 input connector ensures easy cord replacement for different country-specific outlets. Both outputs are fully isolated, providing clean and stable power for sensitive electronics. The adapter features a standard DC barrel connector (5.5×2.1mm or 5.5×2.5mm) on each channel.

DC Output Voltage	DC Output Rated Current	Body size	DC cable length	AC socket options	Standard
12V/5V ± 5%	0.8A/4A	115*50*32 mm	1.2m/1.5m (optional)	C6/C8/C14	UL/CUL FCC CE CB
Input Rated Voltage	Input Frequency Range	Input Current	Input Inrush Current	Efficiency	Ripple and Noise
86Vac～264Vac	47Hz～63Hz	0.8A (Max)	50A	88%, Level VI	≤120mV
Turn On Delay Time	Dielectric Withstand Voltage	Protection	Leakage Current	Operating Temperature	Storage Temperature
≤3S (AC:110V full load)	3K Vac 1min	OVP, OCP, SCP, OTP	≤5mA	0°C ~ +55°C	-20°C ~ +85°C

The aluminum alloy housing provides excellent heat dissipation without the need for a fan, making it ideal for noise-sensitive installations. The compact form factor (115*50*32mm) makes it ideal for space-constrained desktop and cabinet installations.

Wide Applications

This dual-output power adapter is designed for devices requiring two different voltages simultaneously:
1.Set-Top Boxes & DVRs: Powers the main board (5V) and HDD/motor (12V) from a single adapter. 2.LED Lighting Systems: Drives 12V LED strips alongside 5V control modules or sensors. 3.POS Terminals & Retail Kiosks: Supplies 5V for logic circuits and 12V for printers or peripherals. 4.Surveillance Systems: Powers 12V cameras and 5V DVR/NVR components simultaneously. 5.Audio Equipment: Delivers 12V for amplifiers and 5V for preamp or digital stages. 6.Industrial Control: Provides 5V logic power and 12V actuator/motor power from one unit. 7.Hard Drive Enclosures: Powers 12V motors and 5V controller boards.

The product label clearly displays all technical parameters and safety certification marks. Each unit is individually tested and serialized for full traceability. The UL, CE, and FCC certifications ensure compliance with international safety standards for global market distribution.

Safety Features

Built-in protection circuitry includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP). In the event of a fault, the power supply enters safe mode and automatically recovers once the fault clears—no manual reset required.

Warranty & Support

We stand behind our products with a full 3-year warranty. Our dedicated support team is available to assist with any questions about compatibility, installation, or technical specifications. OEM and ODM services are also available for bulk orders.
