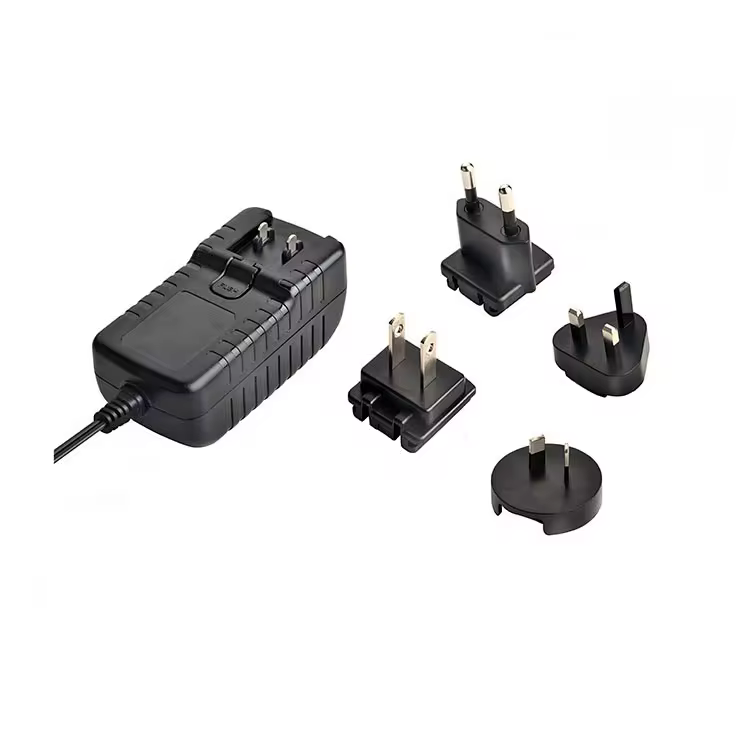

12V 3A Power Supply 36W AC/DC Adapter Interchangeable Plug

Product Overview

The 12V 3A Interchangeable Plug Power Adapter is a versatile and reliable wall adapter designed for global use. With universal AC input (100-240V) and a stable 36W DC output, it works seamlessly across North America, Europe, Asia, and beyond. The adapter features interchangeable AC heads (EU, US, UK, AU, and more), allowing users to easily switch plug types for different regions without needing separate units . It is compatible with a wide range of 12V devices, including wireless routers, LED strip lights, CCTV security cameras, network switches, and other mid-power electronics .

DC Output Voltage	DC Output Rated Current	Body size	DC cable length	DC connector	Standard
12V ± 5%	3A	94*46*41mm	1.2m/1.5m (optional)	5.5×2.1/2.5×12mm (optional)	UL/CUL FCC CE CB
Input Rated Voltage	Input Frequency Range	Input Current	Input Inrush Current	Efficiency	Ripple and Noise
86Vac～264Vac	47Hz～63Hz	0.8A (Max)	50A	88%, Level VI	≤120mV
Turn On Delay Time	Dielectric Withstand Voltage	Protection	Leakage Current	Operating Temperature	Storage Temperature
≤3S (AC:110V full load)	3K Vac 1min	OVP, OCP, SCP, OTP	≤5mA	0°C ~ +55°C	-20°C ~ +85°C

The adapter's ultra-compact form factor (96*46*41mm) makes it ideal for space-constrained installations. The matte black housing provides excellent heat dissipation while maintaining a professional appearance. The integrated strain relief on the DC cable ensures long-term durability even with frequent plugging and unplugging.

Wide Applications

This 12V 3A interchangeable plug power adapter is designed for versatility. It powers wireless routers, LED strip lights, CCTV security cameras, network switches, access control systems, 3D printers, and other 12V devices . The stable 12V output ensures clean power for delicate electronics, providing a long-lasting and reliable solution for home, office, and industrial applications .

The product label clearly displays all technical parameters and safety certification marks. Each unit is individually tested and serialized for full traceability. The UL, CE, and FCC certifications ensure compliance with international safety standards for global market distribution.

Safety Features

Built-in protection circuitry includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP). In the event of a fault, the adapter enters safe mode and automatically recovers once the fault clears—no manual reset required.

Warranty & Support

We stand behind our products with a full 3-year warranty. Our dedicated support team is available to assist with any questions about compatibility, installation, or technical specifications. OEM and ODM services are also available for bulk orders.

About TQ Power

Download Specification

Spec. 12v 3a 36W interchangeable 260901.pdf
