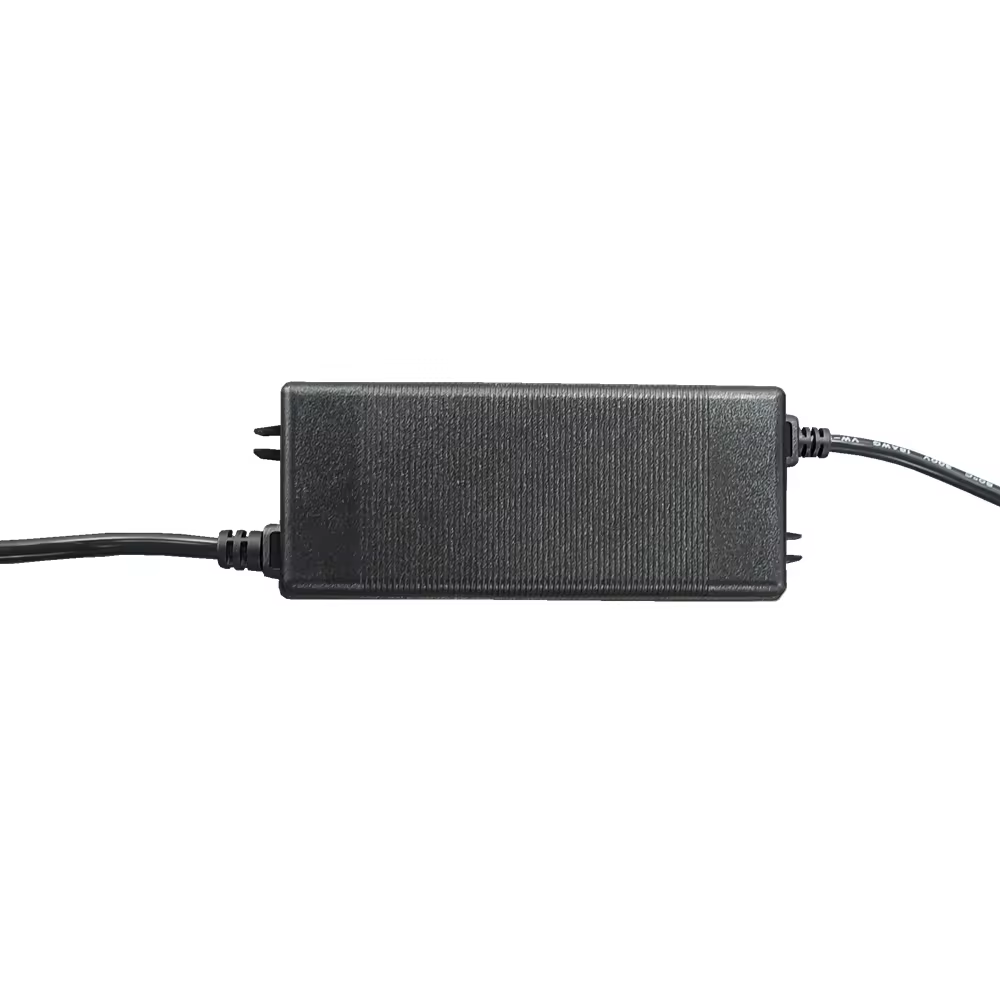

24V 3.75A Power Supply 90W AC/DC Adapter IP67 Waterproof

Product Overview

The 24V 3.75A Waterproof Power Supply is a robust and reliable constant voltage LED driver engineered for demanding outdoor and industrial environments. With universal AC input (100-240V or 90-305V) and a stable 90W DC output, it works seamlessly across global regions. The fully sealed IP67-rated housing, typically constructed from die-cast aluminum or fully potted plastic, provides complete protection against dust, moisture, and temporary water immersion . The unit features an efficiency rate exceeding 90%, minimizing energy loss and reducing operational costs for long-term lighting systems.

DC Output Voltage	DC Output Rated Current	Body size	DC cable length	DC connector	Standard
24V ± 5%	3.75A	135*61*33mm	1.2m/1.5m (optional)	5.5×2.1/2.5×12mm (optional)	UL/CUL FCC CE CB
Input Rated Voltage	Input Frequency Range	Input Current	Input Inrush Current	Efficiency	Ripple and Noise
86Vac～264Vac	47Hz～63Hz	0.8A (Max)	50A	88%, Level VI	≤120mV
Turn On Delay Time	Dielectric Withstand Voltage	Protection	Leakage Current	Operating Temperature	Storage Temperature
≤3S (AC:110V full load)	3K Vac 1min	OVP, OCP, SCP, OTP	≤5mA	0°C ~ +55°C	-20°C ~ +85°

The aluminum alloy housing provides excellent heat dissipation and full environmental protection. The IP67 rating ensures complete dust-tight sealing and protection against temporary water immersion, making it ideal for harsh outdoor and industrial environments.

Wide Applications

This 24V 3.75A waterproof power supply is designed for versatile outdoor and industrial use. It powers LED street lights, landscape lighting, garden lights, advertising signage, architectural decorative lighting, moving signs, CCTV security systems, and other 24V DC LED applications . The stable 24V output ensures clean power for sensitive electronics, providing a long-lasting and reliable solution for residential, commercial, and industrial projects.

The product label clearly displays all technical parameters and safety certification marks. Each unit is individually tested and serialized for full traceability. The UL, CE, and FCC certifications ensure compliance with international safety standards for global market distribution.

Safety Features

Built-in protection circuitry includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP). In the event of a fault, the power supply enters safe mode and automatically recovers once the fault clears—no manual reset required.

Warranty & Support

We stand behind our products with a full 3-year warranty. Our dedicated support team is available to assist with any questions about compatibility, installation, or technical specifications. OEM and ODM services are also available for bulk orders.

About TQ Power

Download Specification

Spec. 24V 3.75A 90W waterproof 260901.pdf
