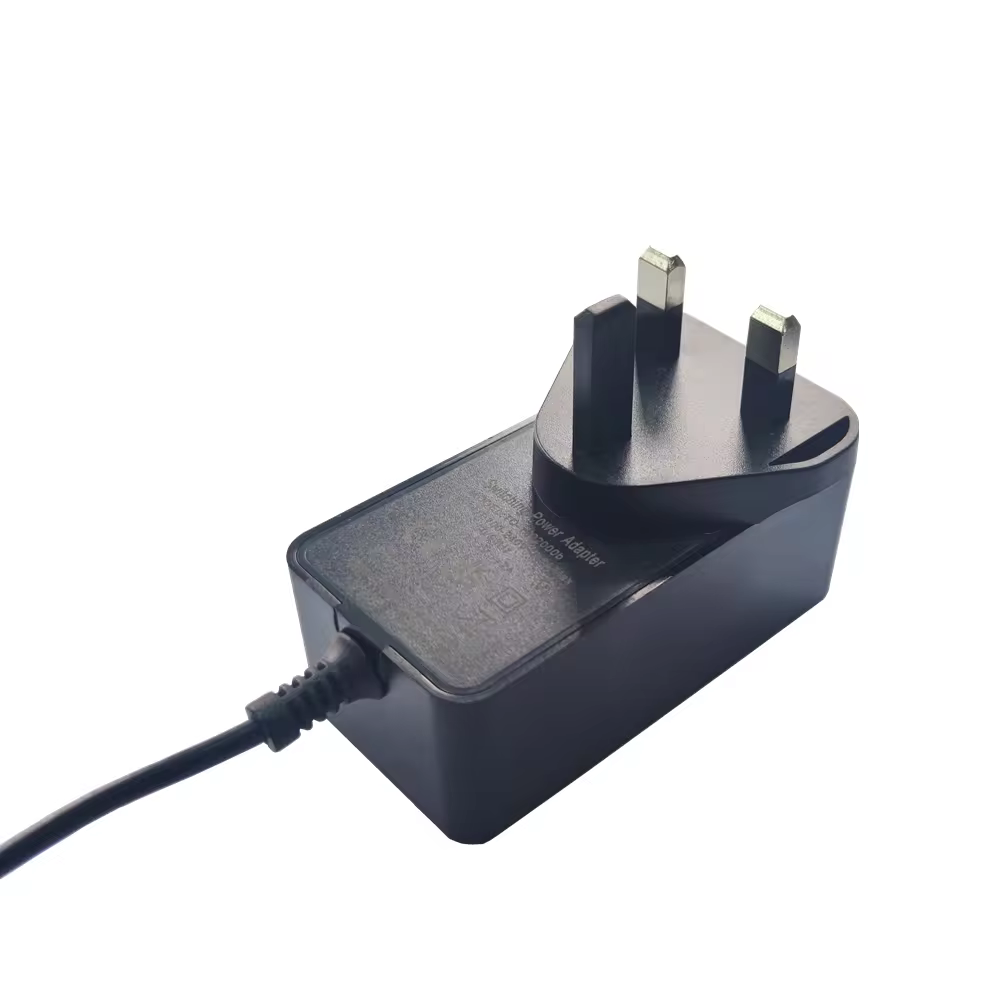

5V~48V 60W Power Supply AC/DC Adapter

Product Overview

The 60W Wall Model Power Adapter is a robust and efficient fixed-plug power supply designed for industrial and commercial electronic devices. It is available in EU, US, UK, and AU plug models, allowing for direct selection based on your target market. With universal AC input (90-264V) and stable DC output options (12V/5A, 24V/2.5A, 48V/1.25A), it works seamlessly across major global regions. The adapter features a standard 2.1mm x 5.5mm DC barrel connector, making it compatible with LED lighting systems, CCTV cameras, industrial controls, and networking equipment. Its matte black housing provides efficient heat dissipation while maintaining a professional appearance. The product is fully compliant with global safety and energy efficiency standards, including UL, CE, FCC, and DoE Level VI (no-load power consumption below 0.21W)

DC Output Voltage	DC Output Rated Current	Body size	DC cable length	DC connector	Standard
5~48V ± 5%	0.5~5A	90*46*32mm	1.2m/1.5m (optional)	5.5×2.1/2.5×12mm (optional)	UL/CUL FCC CE CB
Input Rated Voltage	Input Frequency Range	Input Current	Input Inrush Current	Efficiency	Ripple and Noise
86Vac～264Vac	47Hz～63Hz	0.8A (Max)	50A	88%, Level VI	≤120mV
Turn On Delay Time	Dielectric Withstand Voltage	Protection	Leakage Current	Operating Temperature	Storage Temperature
≤3S (AC:110V full load)	3K Vac 1min	OVP, OCP, SCP, OTP	≤5mA	0°C ~ +55°C	-20°C ~ +85°C

The adapter's compact form factor (90*46*32 mm) makes it ideal for space-constrained installations. The matte black housing provides excellent heat dissipation while maintaining a professional appearance. The integrated strain relief on the DC cable ensures long-term durability even with frequent plugging and unplugging.

Wide Applications

This 60W power adapter is designed for versatile use. It powers LED lighting systems, CCTV security cameras, industrial automation equipment, networking devices, POS terminals, and other 12V/24V/48V electronic devices. The stable DC output ensures clean power for sensitive electronics, providing a long-lasting and reliable solution for home, office, and industrial applications.

The product label clearly displays all technical parameters and safety certification marks. Each unit is individually tested and serialized for full traceability. The UL, CE, and FCC certifications ensure compliance with international safety standards for global market distribution.

Safety Features

Built-in protection circuitry includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP). In the event of a fault, the adapter enters safe mode and automatically recovers once the fault clears—no manual reset required.

Warranty & Support

We stand behind our products with a full 3-year warranty. Our dedicated support team is available to assist with any questions about compatibility, installation, or technical specifications. OEM and ODM services are also available for bulk orders.
