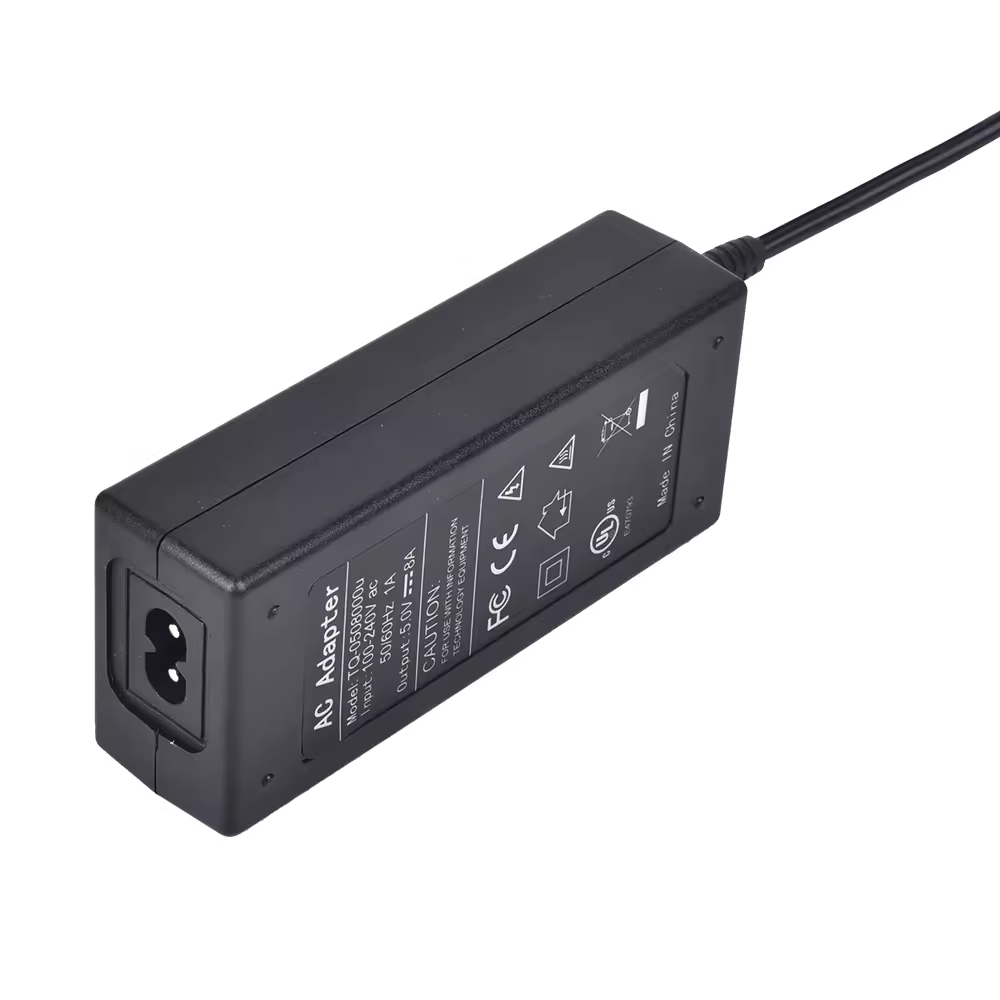

12V 24V 60W Power Supply AC/DC Adapter

Product Overview

The 60W Desktop Model Power Adapter is a robust and efficient power supply designed for a wide range of industrial and commercial electronic devices. It features a detachable AC power cord with a standard IEC320-C14 (3-wire, Class I) or IEC320-C6 (3-wire) input connector, allowing users to easily replace the cord for different regional outlets. With universal AC input (90-264V) and stable DC output options (12V/5A, 24V/2.5A,15V/4A), it works seamlessly across all major global regions. The adapter features a standard 2.1mm x 5.5mm or 2.5mm x 5.5mm DC barrel connector, making it compatible with IT equipment, networking devices, LED lighting systems, and light industrial applications. Its matte black housing provides efficient heat dissipation while maintaining a professional appearance, and the desktop form factor offers better thermal management compared to wall-mount adapters.

DC Output Voltage	DC Output Rated Current	Body size	DC cable length	AC socket options	Standard
5~48V ± 5%	2~5A	115*50*32 mm	1.2m/1.5m (optional)	C6/C8/C14	UL/CUL FCC CE CB
Input Rated Voltage	Input Frequency Range	Input Current	Input Inrush Current	Efficiency	Ripple and Noise
86Vac～264Vac	47Hz～63Hz	0.8A (Max)	50A	88%, Level VI	≤120mV
Turn On Delay Time	Dielectric Withstand Voltage	Protection	Leakage Current	Operating Temperature	Storage Temperature
≤3S (AC:110V full load)	3K Vac 1min	OVP, OCP, SCP, OTP	≤5mA	0°C ~ +55°C	-20°C ~ +85°C

The aluminum alloy housing provides excellent heat dissipation without the need for a fan, making it ideal for noise-sensitive installations. The compact form factor (115*50*32mm) makes it ideal for space-constrained desktop and cabinet installations.

Wide Applications

This 60W desktop power adapter is designed for versatile use. It powers IT equipment, networking devices, LED lighting systems, CCTV security cameras, POS terminals, audio/video equipment, and light industrial machinery. The stable DC output ensures clean power for sensitive electronics, providing a long-lasting and reliable solution for home, office, and industrial applications.

The product label clearly displays all technical parameters and safety certification marks. Each unit is individually tested and serialized for full traceability. The UL, CE, and FCC certifications ensure compliance with international safety standards for global market distribution.

Safety Features

Built-in protection circuitry includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP). In the event of a fault, the power supply enters safe mode and automatically recovers once the fault clears—no manual reset required.

Warranty & Support

We stand behind our products with a full 3-year warranty. Our dedicated support team is available to assist with any questions about compatibility, installation, or technical specifications. OEM and ODM services are also available for bulk orders.

About TQ Power

Download Specification

Spec. 12v 5a 60W dekstop 260901.pdf
