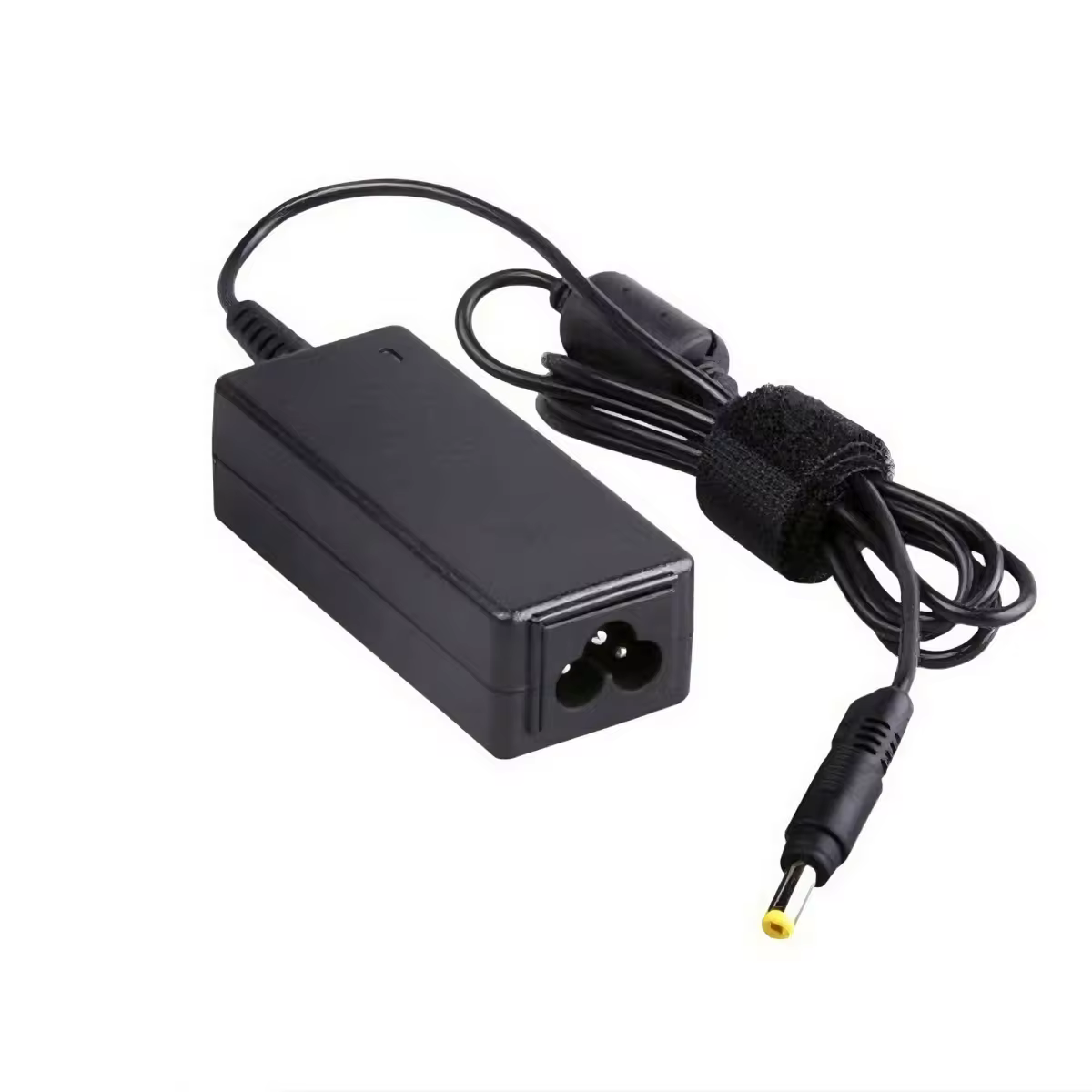

12V 3A Power Supply 36W Desktop AC/DC Adapter

Product Overview

The 12V 3A Power Supply is a compact and reliable desktop adapter designed for a wide range of electronic devices. With universal AC input (100-240V), it works seamlessly across North America, Europe, Asia, and beyond. The adapter features a standard 5.5/2.1mm DC output connector, making it compatible with LED strip lights, wireless routers, security cameras, audio/video equipment, and many other 12V devices.

DC Output Voltage	DC Output Rated Current	Body size	DC cable length	AC socket options	Standard
12V ± 5%	3A	101*44*32mm	1.2m/1.5m (optional)	C6/C8/C14	UL/CUL FCC CE CB
Input Rated Voltage	Input Frequency Range	Input Current	Input Inrush Current	Efficiency	Ripple and Noise
86Vac～264Vac	47Hz～63Hz	0.8A (Max)	50A	88%, Level VI	≤120mV
Turn On Delay Time	Dielectric Withstand Voltage	Protection	Leakage Current	Operating Temperature	Storage Temperature
≤3S (AC:110V full load)	3K Vac 1min	OVP, OCP, SCP, OTP	≤5mA	0°C ~ +55°C	-20°C ~ +85°C

The adapter's compact form factor (101*44*32mm) makes it ideal for space-constrained installations. The matte black housing provides excellent heat dissipation while maintaining a professional appearance. The integrated strain relief on the DC cable ensures long-term durability even with frequent plugging and unplugging.

Wide Applications

This 12V power supply is designed for versatility. It powers SMD2835, 3528, and 5050 RGB LED strip lights, LED strings, wireless routers, ADSL cats, network hubs, switches, security cameras, and audio/video equipment. The stable 12V output with ≤120mV ripple ensures clean power for sensitive electronics.

The product label clearly displays all technical parameters and safety certification marks. Each unit is individually tested and serialized for full traceability. The UL, CUL, FCC, CE, and CB certifications ensure compliance with international safety standards for global market distribution.

Safety Features

Built-in protection circuitry includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP). In the event of a fault, the adapter enters safe mode and automatically recovers once the fault clears—no manual reset required.

Warranty & Support

We stand behind our products with a full 3-year warranty. Our dedicated support team is available to assist with any questions about compatibility, installation, or technical specifications. OEM and ODM services are also available for bulk orders.

About TQ Power

Download Specification

Spec. 12v 3a 36W dekstop 260901.pdf
