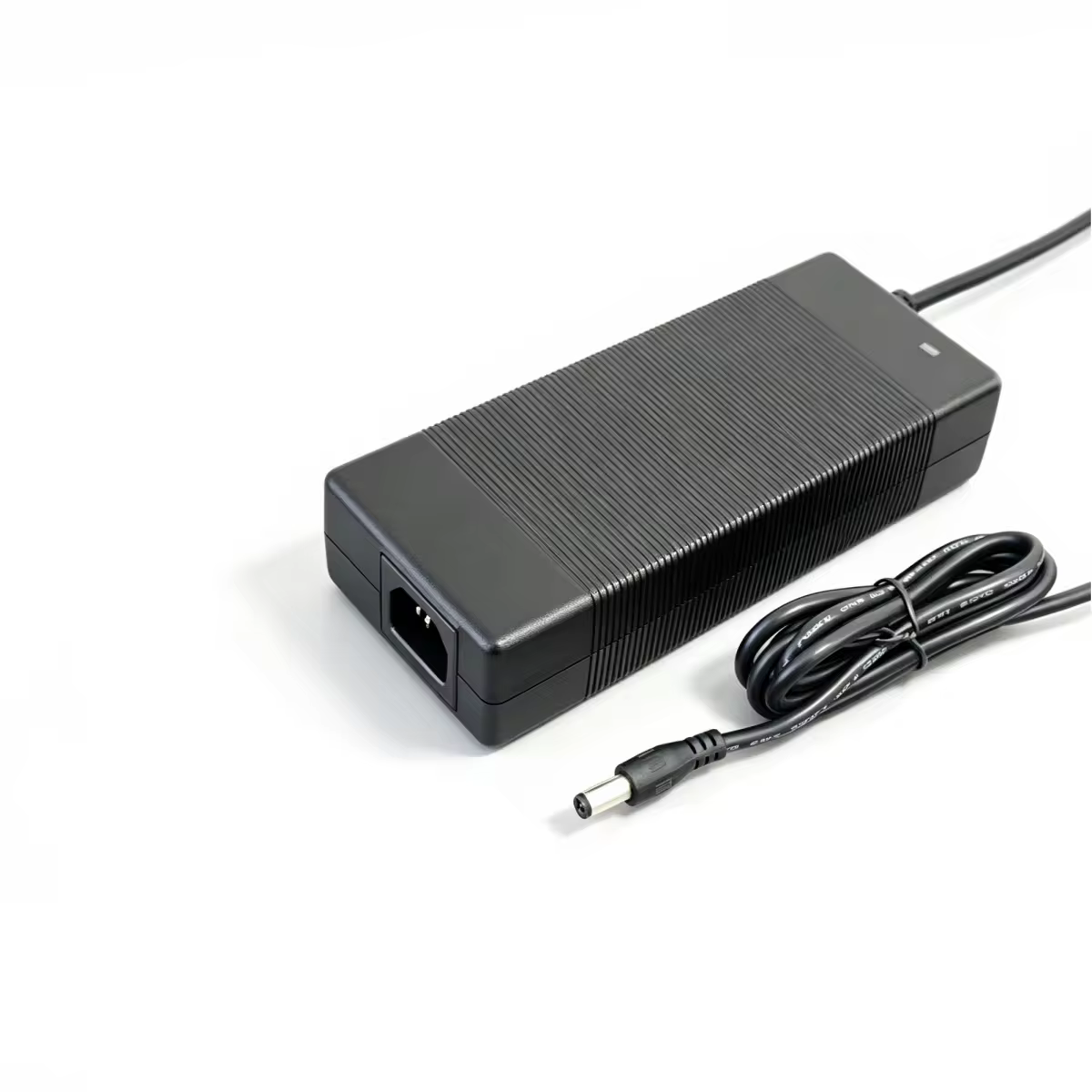

24V 5A Power Supply 120W AC/DC Adapter

Product Overview

The 24V 5A Power Supply is a robust and efficient 120W desktop power supply engineered for high-power electronic devices. With universal AC input (100-240V) and a stable 120W DC output, it works seamlessly across North America, Europe, Asia, and beyond. The adapter features a detachable AC power cord with a standard C6, C8, or C14 connector, allowing users to easily replace the cord for different regional outlets. It comes with a standard 2.1×5.5mm or 5.5×2.5mm DC output connector, making it compatible with 3D printers, industrial controls, LED lighting systems, medical devices, CCTV security systems, and many other 24V devices.

DC Output Voltage	DC Output Rated Current	Rated Power	AC Socket Options	Body Size	Certification
24V ± 5%	5A	120W	C6/C8/C14	170×72×35mm	UL/CUL FCC CE CB
Input Voltage	Input Frequency	Input Current	Efficiency	Protection	Operating Temp
86~264Vac	47~63Hz	1.5A (Max)	88%, Level VI	OVP/OCP/SCP/OTP	0°C ~ +55°C

The aluminum alloy housing provides excellent heat dissipation without the need for a fan, making it ideal for noise-sensitive installations. The compact form factor (170×72×35mm) makes it ideal for space-constrained desktop and cabinet installations.

Wide Applications

This 24V 5A power supply is designed for versatile use. It powers 3D printers, industrial control systems, LED lighting systems, medical devices, CCTV security systems, and many other 24V high-power devices. The stable 24V output ensures clean power for sensitive electronics, providing a long-lasting and reliable solution for home, office, and industrial applications.

The product label clearly displays all technical parameters and safety certification marks. Each unit is individually tested and serialized for full traceability. The UL, CE, and FCC certifications ensure compliance with international safety standards for global market distribution.

Safety Features

Built-in protection circuitry includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP). In the event of a fault, the power supply enters safe mode and automatically recovers once the fault clears — no manual reset required.

Warranty & Support

We stand behind our products with a full 3-year warranty. Our dedicated support team is available to assist with any questions about compatibility, installation, or technical specifications. OEM and ODM services are also available for bulk orders.

About TQ Power

Download Specification

Spec. 24V 5A 120W Desktop 260910.pdf
